Fence Boom Automatic Car Park Barrier Gate Arms 4.5m Boom Length
Application
Suitable for indoor as well as outdoor parking area
Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.
Technical Specification
| Description | Parameter |
| Working Temperature | -40℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 60kgs |
| Arm Speed | 6s |
| Max boom length | 6meters |
Features:
Advanced Features:
1. Safe---the barrier will automatically go back when meet obstacles during closing.
2, Swing Out- Arm will swing out when hit directly by vehicle (only 1 second model ) to avoid further damage on the vehicle.
3. Clutch key can be used to release the clutch when power off.
4.an cooling machine reduces the motor temperature by high frequency using, and never get over-heated. Unique temperature calefaction design for low temperature using prevents freezing in cold weather.
5. Exactitude aluminum alloy die-casting motor base reduces the noise and joint abrasion to prolong the
barrier gate working life.
6. Thimble type motor worm design for preventing plugging up in using.
7. Balance spring--- no noise and easy adjusting.
8. Double limit ways (electronic limit and motor sensor memory limit) for boom rising and falling.
Basic Features:
- AC motor is more powerful and no maintenance.
- Boom can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1
- second to 6 seconds.
- All the operation process is soft without any noise and shaking.
- Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other
- functions.
- Green light and red light are used inside for indication the position of the boom.
All Product Tests Before Delivery:
WEJOIN utilizes advanced testing equipment and various testing methods in all production processes.
Certification:
WEJOIN product manufacturing and testing are conducted in rigorous conformation with ISO international
quality management system standards, allowing our company to be ISO certified. Meanwhile, our products
have earned CE marking and more than 80 patent rights.
Company, Factory and Showroom
WEJOIN Science & Technology Park, which spans 12,000 square meters and offers a combined floor
area of up to 28,000 square meters, boasts of a most completely independent production line compared with
the same industry in China.
Product Tags:
|
|

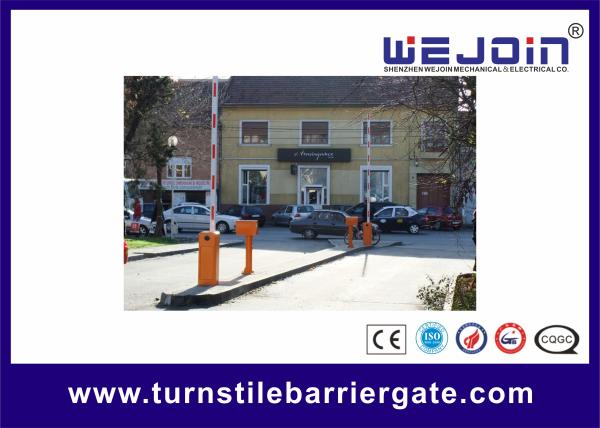

Straight Boom Automatic Car Park Barrier Gate Arms 6m Boom Length Images
|
