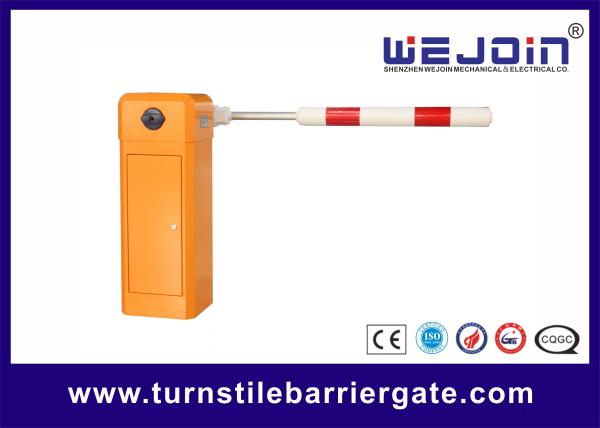

Intelligent Automatic Car Park Barriers 3 meters parking gate arm
Quick Detail:
Name: High-Speed Barrier Gate
Application: Highway toll
Speed: 1 second
Rated Power: 80W
Net Weight: 60KG
Feature: Manual release
Certificate: CE, ISO,
Voltage: AC220V, AC110V
Functions & Features:
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
Applications:
Fast Barrier Gate adopts a special machine core, swing away boom holder, and boom. This barrier gate runs at high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.
Specifications
| Model | WJDZ102 |
| Working Temperature | -40℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 60kgs |
| Speed | 1S |
| Max boom length | 3 meters |
Why choose WEJOIN High-Speed Barrier Gate?
1. High-Speed Barrier Gate adopts a special machine core, swing away boom holder, and boom. This barrier gate runs at high speed but stably. The running time is 1 second. It can be used for highway toll.
2. High-Speed Barrier Gate uses a swing-away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolongs the lifetime of the barrier.
3. High-Speed Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness and painted so that the barrier can be used indoor and outdoor.
4. The barrier core is special and the main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrians and vehicles. A manual release device can operate the barrier when power failure.
5. WEJOIN has sub-companies to produce and process almost all accessories. Besides standard products, we offer OEM service in the meanwhile.
