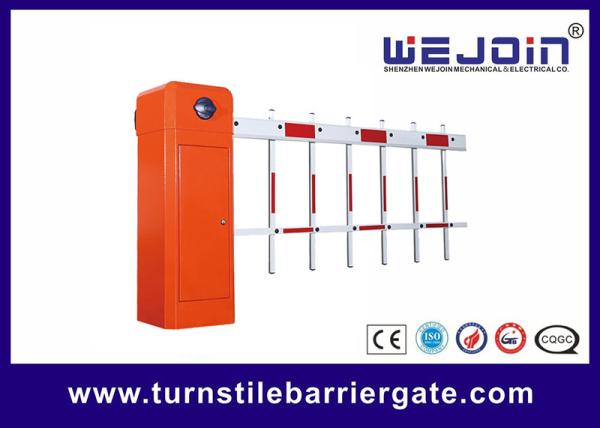

two fence boom highway toll barrier gate 5 million operating times
Quick Detail:
| Name | High Speed Barrier Gate | Application | Highway toll |
| Speed | 1 second | Feature | Manual release |
| Rated Power | 80W | Certificate | CE, ISO, |
| Net Weight | 60KG | Voltage | AC220V, AC110V |
Description:
Model Selection and Differences
| Model | Boom Shape | Max Boom Length | Speed |
| WJDZ10216 | Straight boom | 6m | 6 seconds |
| WJDZ10213 | Straight boom | 4.5m | 3 seconds |
| WJDZ10211 | Straight boom | 3m | 1 second |
| WJDZ10226 | 90 degree, Articulated boom | 5m | 6 seconds |
| WJDZ10223 | 90 degree, Articulated boom | 3m | 3 seconds |
| WJDZ10236 | 180 degree, Articulated boom | 5m | 6 seconds |
| WJDZ10233 | 180 degree, Articulated boom | 3m | 3 seconds |
| WJDZ10246 | Two-level, fence boom | 4.5m | 6 seconds |
| WJDZ10256 | Three level, fence boom | 4m | 6 seconds |
Functions & Features:
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
Applications:
Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.
Specifications
| Model | WJDZ102 |
| Working Temperature | -40℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 60kgs |
| Speed | 1S |
| Max boom length | 3 meters |
WEJOIN Main Advantages
1. Global leading manufacturer for barrier gate.
2. Mater of core technology and innovation.
3. Intelligent quality manufacture and automatic flexible production.
4. Global advanced manufacturing process and testing equipment.
5. Servo, bi-direction motor and other leading technique.
6. High speed and slow speed coexist in motor.
7. Integral service network covering first-tier and second-tier cities, and more under construction service network.
