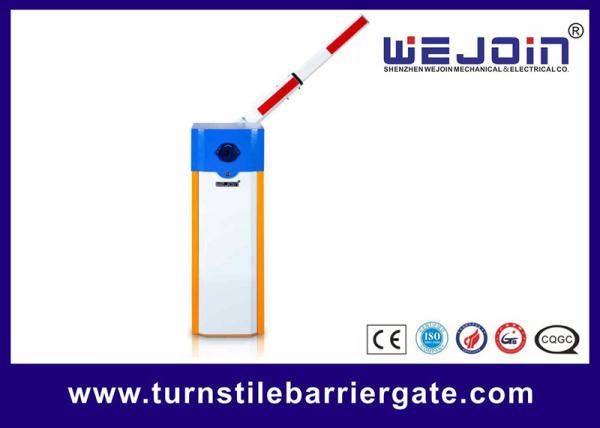

Highway Toll RS485 Automatic Safety Barrier Gate 1S For Parking Lot

Automatic Safety Barrier gate for Parking Lot Customized logo

Applications:

Fast Barrier Gate adopts a special machine core, swing away boom holder, and boom. This barrier gate runs at high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.

Product Display

Manual release
Auto-closing
Reversing on obstacle
Photocell, Loop sensor, Pressure sensor (optional)

Quick Detail:

Name: High-Speed Barrier Gate

Application: Highway toll

Speed: 1 second

Rated Power: 80W

Net Weight: 60KG

Feature: Manual release

Certificate: CE, ISO,

Voltage: AC220V, AC110V

Functions & Features:

1. Manual release device to operate the barrier when power failure

2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

3. Motor cooling fan to avoid the over-heating possibility

4. Automatic reversing when the barrier boom meets the obstruction

5. Auto closing realization through menu setting on the control panel

6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

7. RS485 Communication Module is compatible

Specifications

RS485 Automatic Safety Barrier Gate

Highway Toll Safety Barrier Gate

1S Parking Lot Barrier Gate

Highway Toll RS485 Automatic Safety Barrier Gate 1S For Parking Lot Images
