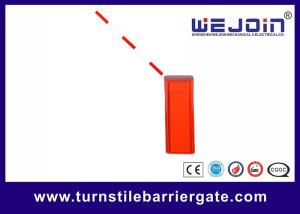

6m Boom automatic parking system barrier gate 5 million cycles
Product Description
Barrier gate, also named as intelligent / electric vehicle road blocker, is a widely used machine in gate access control application.
Boom barrier gate is very important for an automatic car parking management system and other traffic project; this equipment widely uses for block the road, manage the access of the gate for all vehicles such as car, truck, bus even motorbike. Everyday, you can easy find barrier gate at everywhere, airport, highway, commercial building, shopping mall, factory, hospital, and so on.
Technical Specifications:
| Model | WJCB02E |
| Boom type | cabon steel straight |
| Max length of boom | 2-3.5M |
| Time for up/down | 3-5s |
| Environment temperature | -35°C~+85°C |
| Protection class | IP54 |
| Max Motor Power | 300W |
| Duty Cycle | 100% |
Functions & Features
1.DC permanent magnet synchronous motor(PMSM),servo control.
2.Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.
3.Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4.Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)
5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)
6.No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7.More sensitive and reacting faster when reversing on obstacles.
8.With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.
9.LCD display controller, more humanized operation and setting.
10.NO/NC wire control signal input are optional.
11.Integrated RS485 communication, RJ45 network, infrared photocell, loop detector interface, radar module and more secondary development.
